Name: 60100-HD Thermal Expansion Testing Machine 100kN Hydraulic Control
Brand: Hai Da Labtester
SKU: 60100-HD
Price: 4,000.00 USD
Availability: InStock

60100-HD Thermal Expansion Testing Machine 100kN Hydraulic Control

Большие изображения : 60100-HD Thermal Expansion Testing Machine 100kN Hydraulic Control

Подробная информация о продукте:

Place of Origin:	Guangdong, China (Mainland)
Фирменное наименование:	Haida
Сертификация:	ISO,CE
Model Number:	60100-HD

Оплата и доставка Условия:

Minimum Order Quantity:	1 Set
Цена:	лично переговорить
Packaging Details:	Export wooden case
Delivery Time:	15 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	30 Sets per Month Haida

контакт

60100-HD Thermal Expansion Testing Machine 100kN Hydraulic Control

описание

Use:	universal tensile testing machine 10kn	Motor:	Adjustable-speed motor, ball screw rod
Control:	Manual	Warranty Period:	1 year
Usage:	Material Tensile Strength Test Machine	Certifications:	ISO 9001, CE
Safety Features:	Emergency Stop Button, Overload Protection	Sensor:	Celtron load cell
Screw:	High Precise Ball Screw	Weight:	Approx.300kg
Elongation Accuracy:	0.001mm	Clamping Mode:	Hydraulically
Load Cell:	China brand load cell, 50 kg (500N)	Stoke:	1100mm including fixture
Available Tensile Stroke:	900mm	All Weight:	2800kg
Load Accuracy:	0.5% F.S	Display Device:	PC
Operation Control:	Hydraulic	Dimensions:	1200mm x 600mm x 1800mm
Capacity:	100 kN	Testing Range:	0-1000 mm
Выделить:	100kN Thermal Expansion Testing Machine , 60100-HD Thermal Expansion Testing Machine , Hydraulic Control Thermal Expansion Testing Machine

60100-HD Thermal Expansion Coefficient Testing Machine

Product Attributes

Use	Universal tensile testing machine 10kN
Motor	Adjustable-speed motor, ball screw rod
Control	Manual
Warranty Period	1 year
Usage	Material Tensile Strength Test Machine
Certifications	ISO 9001, CE
Safety Features	Emergency Stop Button, Overload Protection
Sensor	Celtron load cell
Screw	High Precise Ball Screw
Weight	Approx. 300kg
Elongation Accuracy	0.001mm
Clamping Mode	Hydraulically
Load Cell	China brand load cell, 50 kg (500N)
Stroke	1100mm including fixture
Available Tensile Stroke	900mm
All Weight	2800kg
Load Accuracy	0.5% F.S
Display Device	PC
Operation Control	Hydraulic
Dimensions	1200mm x 600mm x 1800mm
Capacity	100 kN
Testing Range	0-1000 mm

Product Description

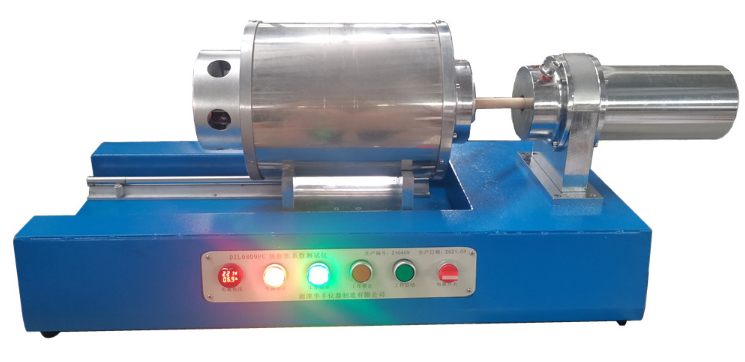

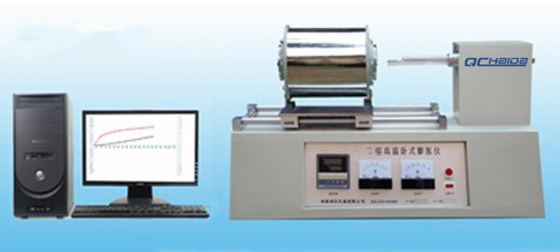

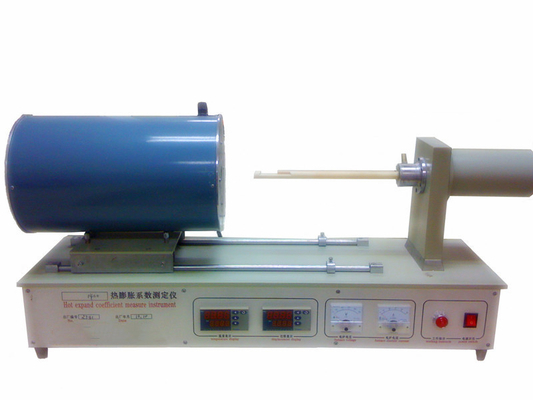

The 60100-HD Thermal Expansion Coefficient Testing Machine is designed to test expansion and shrinkage characteristics of various materials including metals, ceramics, glaze materials, fire-resistant materials, and other non-metallic materials during baking processes. This machine complies with GB/T3810.8-2016 and ISO 10545.8-1995 standards for tile thermal expansion coefficient testing.

Key Features:

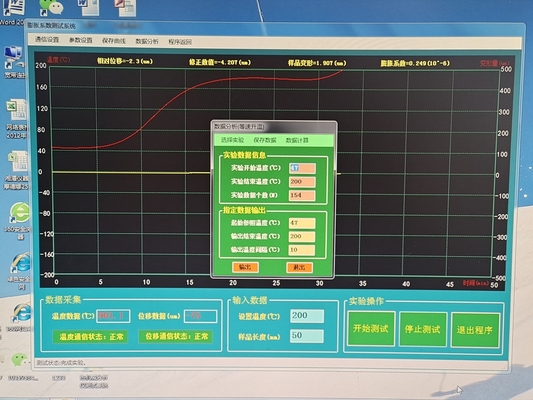

Automatically controls temperature, records, saves, and prints data including temperatures and expansion coefficient curves
Complete test process controlled by computer
Maximum stove temperature options: 1000℃/1400℃/1600℃
Bending scope: ±2.5mm
Displacement sensor sensitivity: 0.1μm with measurement accuracy of 0.5μm
Automatic calibration range
Temperature controlling accuracy: ±1℃
Automatic calculation of expansion coefficient and line swelling capacity
Automatic adjustment of compensation factor
Sample size: Ф6～10*50mm, 10*10*50mm
Power supply: 220V, 2KW
