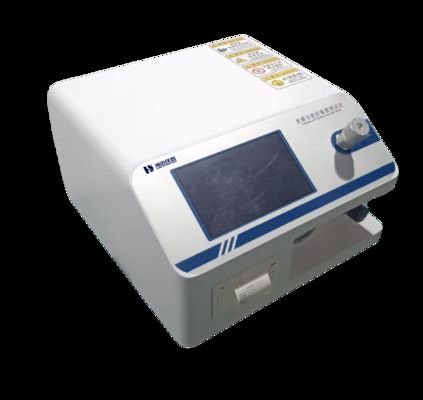

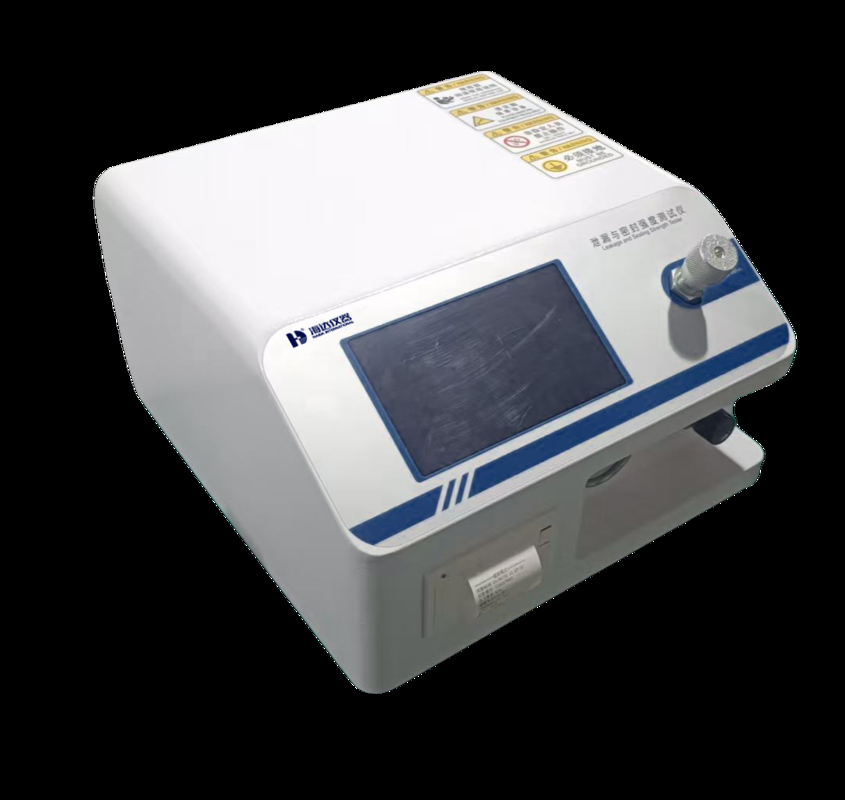

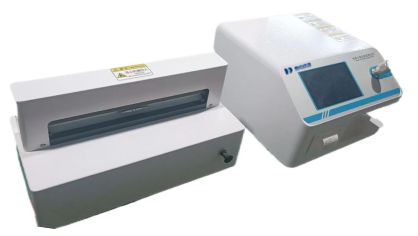

EQUIPMENT DETAILS OF 5084-HD LEAK BURST TESTER

EQUIPMENT DETAILS OF 5084-HD LEAK BURST TESTER
EQUIPMENT DETAILS OF 5084-HD LEAK BURST TESTER EQUIPMENT DETAILS OF 5084-HD LEAK BURST TESTER EQUIPMENT DETAILS OF 5084-HD LEAK BURST TESTER

Большие изображения :  EQUIPMENT DETAILS OF 5084-HD LEAK BURST TESTER

Подробная информация о продукте:
Место происхождения: КИТАЙ
Фирменное наименование: Haida
Сертификация: CE,,ISO
Номер модели: 5084-HD
Оплата и доставка Условия:
Количество мин заказа: 1
Цена: лично переговорить
Упаковывая детали: Каждый комплект защищен смоляным волокном и пленкой PP, а затем помещайте в сильный деревянный корпу
Время доставки: 20 дней после подтверждения заказов
Условия оплаты: L/C, T/T, D/A, D/P, Western Union, Moneygram
Поставка способности: 300 комплектов в месяц

EQUIPMENT DETAILS OF 5084-HD LEAK BURST TESTER

описание
Давление впрыска: 1 тонна Размер изображения: 640*480, 1024*768, 2048*1536, 2592*1944
Внешние размеры: Около 1450*850*1680 мм Размер печи: Φ45 мм*350 мм
Диапазон диаметра: Φ20-Φ40 Внутренний размер: 500×500×600mm
Скорость ссадины: 0.32m/sec Критерии дизайна: CNS-11887/11888; PCTS-7; GB/T 4851
Внешнее измерение: 180 × 270 × 560 (мм) Вращающаяся скорость: 60/72 оборотов в минуту
Прилавок: LCD, 0-999,999 Диапазон отображения: ± 0,3 ℃
Расстояние между фиксаторами: 19-75 мм,57-75 мм (необязательно) Диапазон испытаний: 0.005 ≈ 300 Вт/m*K

EQUIPMENT DETAILS OF 5084-HD LEAK BURST TESTER

EQUIPMENT DETAILS OF 5084-HD LEAK BURST TESTER 0








PRODUCT DESCRIPTION



The leak burst tester is professionally used to test the comprehensive sealing performance of various soft packages (such as heat-sealed/bonded aseptic packaging, hoses) and bottle caps and bottles. It can quantitatively measure the sealing strength, heat-sealing quality, whole bag bursting pressure, and sealing leakage, analyze the material's compressive and bursting strength, and evaluate the bottle cap's sealing, connection release strength, material stress strength, as well as the bottle's compression resistance, burst resistance, and overall sealing pressure resistance of the hose, achieving all-round reliability verification from edge sealing to connection parts.

DESIGN STANDARD

ASTM F1140, ASTM F2054,ISO 11607-1, ISO 11607-2

TECHNICAL PARAMETERS

Item

Description

Test range

 0.00 ~ 600.00Kpa (standard configuration)

 Air source pressure

0.5MPa ~ 0.7MPa (air source user-provided)

 Air source interface

Φ6 mm polyurethane tube

Dimensions

400 (L) × 400 (W) × 240 (H) mm

Test seat size

280mm (L) × 380mm (W) × 380mm (H)

(can be customized)

Net weight

30kg(Including Test Fixture)



ABOUT US

Haida International Equipment Co,Ltd

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

WHY CHOOSE US?
  • Design & Production : Solution Consultation for each order
  • Recommend the most cost -performance machine
  • Research & Develop the suitable one for Special- designed Model.
  • Shipping & Delivery: One-Stop Service
  • Production- Deliver to your door - Installation & Training- Technical Support
  • Warranty
  • 1 year warranty with lifetime technology support
  • After-Sale Service
  • React within 2 Hours
  • Video inspection & on-site service combined
FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
