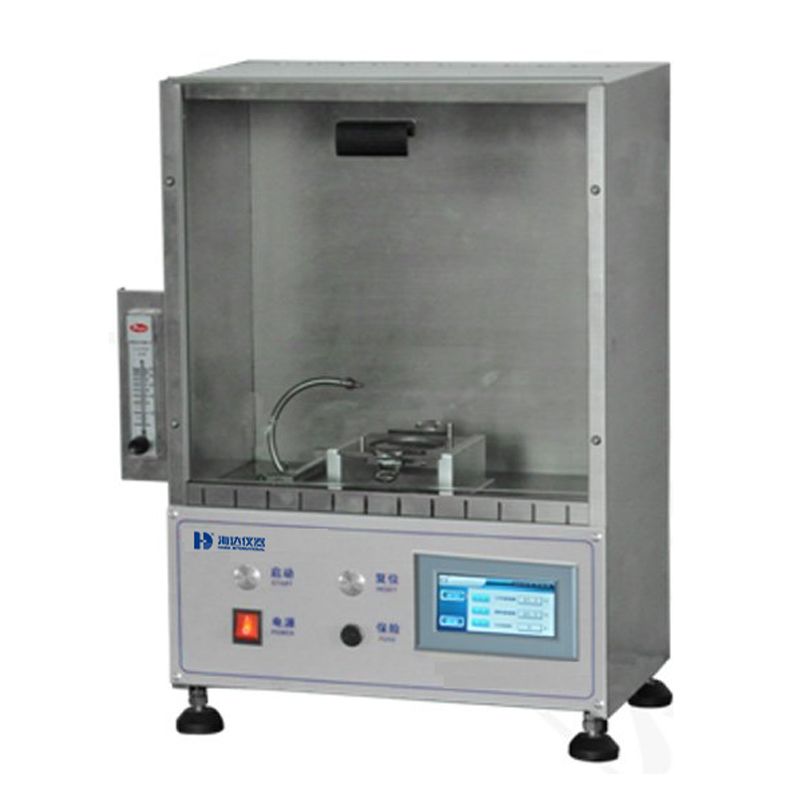

Blankets Flammability Tester with US-made No.18 Needle Burner ASTM D4151-2010

Blankets Flammability Tester with US-made No.18 Needle Burner ASTM D4151-2010
Blankets Flammability Tester with US-made No.18 Needle Burner ASTM D4151-2010 Blankets Flammability Tester with US-made No.18 Needle Burner ASTM D4151-2010

Большие изображения :  Blankets Flammability Tester with US-made No.18 Needle Burner ASTM D4151-2010

Подробная информация о продукте:
Место происхождения: Китай
Фирменное наименование: Haida
Сертификация: CE,,ISO
Номер модели: 6025-HD
Оплата и доставка Условия:
Количество мин заказа: 1
Цена: лично переговорить
Упаковывая детали: Каждый набор защищен смолой волокна и ПП пленки, а затем помещен в сильный деревянный корпус с опера
Время доставки: 20 дней после подтверждения заказа
Условия оплаты: Аккредитив, T/T, D/A, D/P, Western Union, MoneyGram
Поставка способности: 300 комплектов в месяц

Blankets Flammability Tester with US-made No.18 Needle Burner ASTM D4151-2010

описание
Контроль: PLC + 5 "цветный сенсорный экран Сжигатель: Игла No 18 производства США (соответствует ASTM D4151-2010 §6.3-6.4)
Автоматическое регулирование: 0.1s разрешение Время зажигания: 0-99.99s регулируемый
Испытательные режимы: Временное зажигание/взрыв пламени Хранитель образца: Соответствует ASTM D4151-2010 §6.2
Газ: Бутан (химически чистый) Маркерная нить: 11.7tex3 белый хлопок
Вес: 30±5 г Размеры: 600×400×370 мм
Источник питания: AC 220В, 50Гц
Выделить:

Blankets Flammability Tester

,

Blankets Flammability Testing Machine

Blanket Flammability Tester

Product Description



Blanket Flammability Tester evaluates the flame resistance and surface flame spread characteristics of blanket fabrics. The test method involves exposing specimens to a standardized flame for a specified duration, then assessing the burning degree, damage, or discoloration of standard test paper to grade the fabric's performance.



Test Standard



ASTM D4151 Standard Test Method for Flammability of Blankets



Product Specifications
Model 6025-HD
Control PLC + 5" color touchscreen
Burner US-made No.18 needle (ASTM D4151-2010 §6.3-6.4 compliant)
ASTM-specified micro gas flow valve (0-50mL/min)
Chamber 520(H)×375(W)×220(D)mm stainless steel, 12ר12.7mm vents, glass window (ASTM D4151-2010 §6.1)
Auto-timing 0.1s resolution
Ignition time 0-99.99s adjustable
Test modes Timed ignition/Flame impact
Brush device 0.41mm nylon bristles (20 strands/cluster, 4 clusters/25mm, 19mm length) per ASTM D4151-2010 §6.5
Sample holder ASTM D4151-2010 §6.2 compliant
4.11 Includes 16mm flame/8mm ignition distance templates
Gas Butane (chemically pure)
Marker thread 11.7tex3 white cotton
Weight 30±5g
4.21 Cloud data/control options (as above)
Dimensions 600×400×370mm
Power AC220V/50Hz, 50W
Blankets Flammability Tester with US-made No.18 Needle Burner ASTM D4151-2010 0
