Подробная информация о продукте:
|
Функция: | испытание на сжатие | Название: | Тест на сжатие трубки для бумажных чашек,Инструмент для бумажного испытания,Тестер для бумажного GSM |
---|---|---|---|
Дисплей: | ЖК-дисплей, цифровой экран | Переключение единиц: | Кгс, Н (необязательно), фунт-сила |
Испытывая скорость: | 10 ~ 200 мм/мин | Размерность: | 360*264*400 мм, 70 * 34 * 60 см, 85*65*80 см |
Диапазон измерений: | 250-5600 кПа, 10 ~ 1000 мН | Режим отображения: | ЖК-дисплей, цифровой режим |
Основные параметры конструкции: | ISO 2248, ASTM-D2210, TAPPI T403, GB/T4857-92, JIS Z0202-87 | ||
Выделить: | bottle axis deviation tester,Accurate Bottle Axis Deviation Tester |
Parameter | Value |
---|---|
Sample Diameter | Positive claw 3-55mm, reverse claw 55-145mm |
Centering Chuck | Four-claw/three-claw optional |
Measuring Range | 0-12.7mm |
Resolution | 0.001mm |
Indication Error | ±0.005mm |
Measurement Error | ≤0.05mm |
Measurable Height | 5mm-400mm |
Weight | 20kg |
Dimensions | 330mm × 240mm × 240mm |

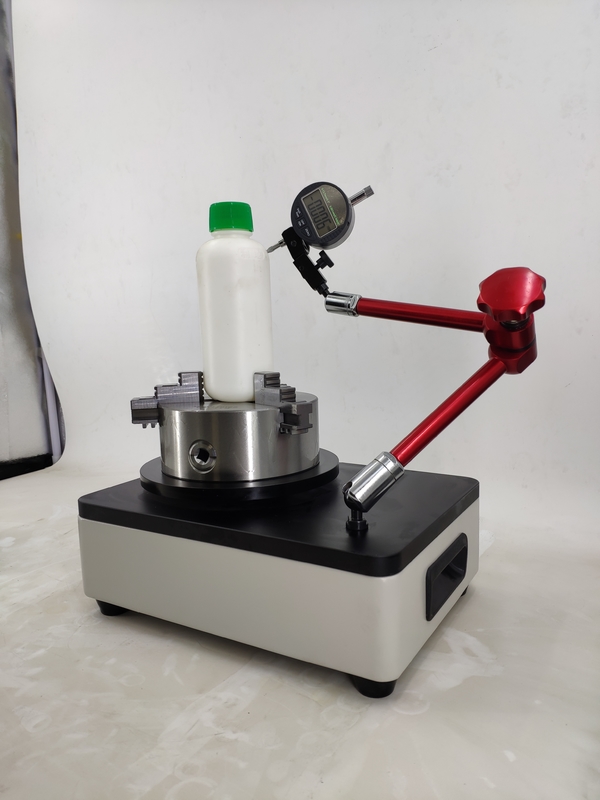

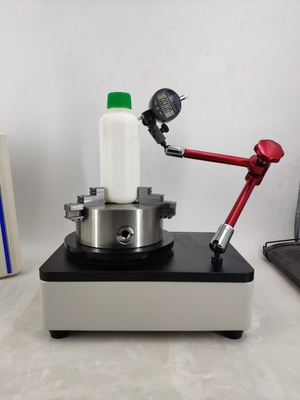

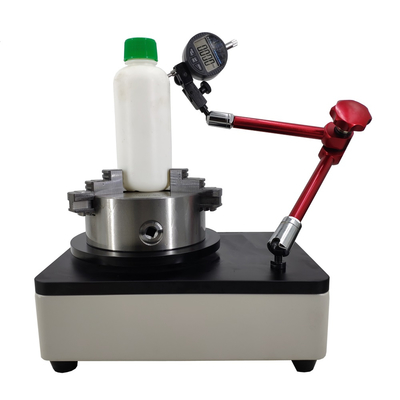

The bottle bottom is fixed on the rotating disk of the horizontal plate, with the bottle mouth contacting the micrometer. Rotating 360° reveals maximum and minimum values, with 1/2 of their difference being the vertical axis deviation value.
Ideal for bottle manufacturers, quality control departments, and research institutions in food, cosmetics, pharmaceutical, and packaging industries.
Haida products are widely used across paper goods, packaging, printing, adhesive tapes, footwear, electronics, plastics, and rubber industries. Our instruments comply with UL, ASTM, JIS, GB, and ISO standards, serving research institutions and quality inspection agencies worldwide.
