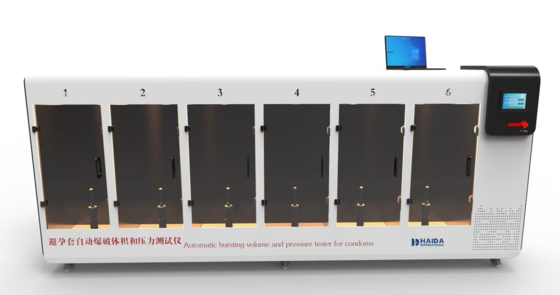

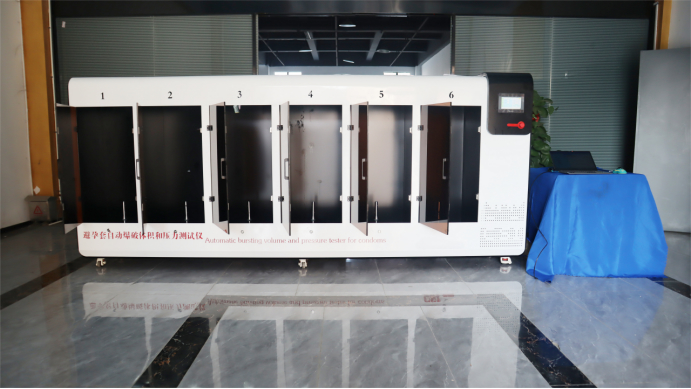

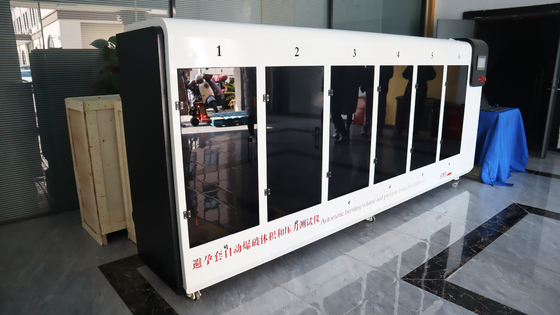

5105-HD Automatic Condom Bursting Volume and Pressure Tester

5105-HD Automatic Condom Bursting Volume and Pressure Tester
5105-HD Automatic Condom Bursting Volume and Pressure Tester 5105-HD Automatic Condom Bursting Volume and Pressure Tester 5105-HD Automatic Condom Bursting Volume and Pressure Tester

Большие изображения :  5105-HD Automatic Condom Bursting Volume and Pressure Tester

Подробная информация о продукте:
Place of Origin: china
Фирменное наименование: HAIDA
Сертификация: CE
Model Number: 5105-HD
Оплата и доставка Условия:
Minimum Order Quantity: 1set
Цена: лично переговорить
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,T/T,D/P,Western Union,MoneyGram
Supply Ability: 30 Sets per Month

5105-HD Automatic Condom Bursting Volume and Pressure Tester

описание
Time Repeatability: 0.01min Data Output: Digital Display
Dimensions: 50cm x 30cm x 40cm Deoxygenation Tube: Dedicated to ECD detector
Temperature Control Range: RT+4℃~450℃ Wavelength Repeatability: ±0.1nm
Cooling Speed: From 300 to 50℃ ≤10min Test Object: Powder, Solid, Liquid
Test Time: 100-300 seconds (adjustable) Ion Source: EI, EI/CI mixed source, CI (PCI & NCI)
Pyrolysis Time Range: 0.01~99.99min Rsd: ≤1.5%
Gas Chromatograph: Equipped with FID & ECD detector Instrument Resolution: 144±5eV
Wavenumber Range: 7800~375 cm-1
Выделить:

5105-HD Automatic Condom Tester

,

Bursting Volume Condom Tester

,

Automatic Condom Tester for ECD Detector

5105-HD Automatic Condom Bursting Volume and Pressure Tester
Product Description
This equipment is designed for determining the bursting capacity and bursting pressure volume of various condoms, rubber gloves, and similar products.
Design Standard
GB7544, ISO4074
Features
  • Q235 material shell with baking paint treatment for rust prevention
  • AL surface anodizing treatment for test position materials
  • Stainless steel foot sampling with good stability and adjustable horizontal function
  • 6MM thick high-temperature resistant tempered glass observation door
  • Independent pressure and volume calculation control for each workstation
Technical Parameters
Item Description
Test Position 6
Bursting Volume (0-60) L
Burst Pressure (0-15.0)kPa
Bursting Volume Accuracy ≤±3.0%
Burst Pressure Accuracy ≤±0.05kPa
Inflation Rate (0.4-0.5)dm3/min, (24-30)dm3/min (automatic adjustment)
Pressure Sensor Pressure Range 0-30KPA
Rotation Speed 0-10R/MIN Step-less speed
Position Material AL surface anodizing treatment
Air Pressure 0.4~0.5mpa
Dimension 3600*650*1500mm
Power 220V,50Hz
About Haida
Founded in 2004, Haida ® is the recognized market leader in Dongguan, China for testing equipment. The company specializes in four main manufacturing series: Accelerated Environmental Series (AES), Universal Tensile Machine (UTM), Paper & Packaging (P&P), and Foam, Furniture & Optical (FFO). Haida also provides testing equipment for Textile & Shoes & Leather, Luggage, Baby carriage & toys, and optical applications.
