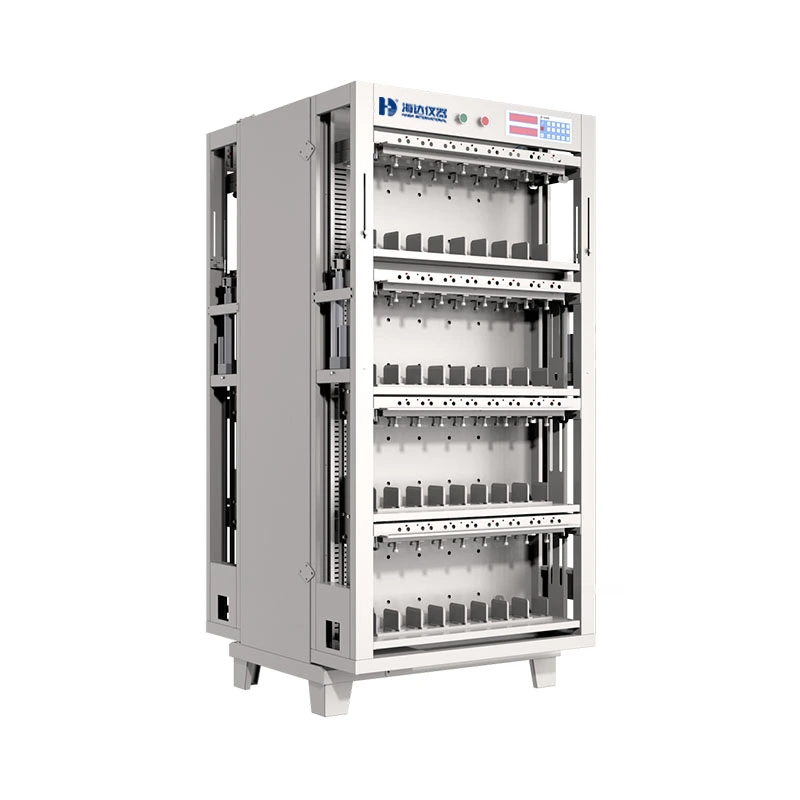

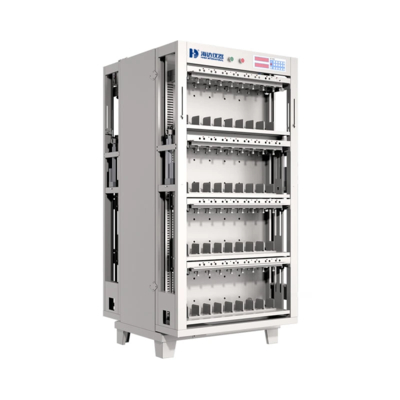

5V 3A Battery Formation& Grading Machine For Lithium ion Battery

5V 3A Battery Formation& Grading Machine For Lithium ion Battery
5V 3A Battery Formation& Grading Machine For Lithium ion Battery

Большие изображения :  5V 3A Battery Formation& Grading Machine For Lithium ion Battery

Подробная информация о продукте:
Место происхождения: Китай
Фирменное наименование: Haida
Сертификация: CE,,ISO
Номер модели: 8008-HD
Оплата и доставка Условия:
Количество мин заказа: 1
Цена: лично переговорить
Упаковывая детали: Каждый комплект защищен смоляным волокном и пленкой PP, а затем помещайте в сильный деревянный корпу
Время доставки: 20 дней после подтверждения заказов
Условия оплаты: L/C, T/T, D/A, D/P, Western Union, Moneygram
Поставка способности: 300 комплектов в месяц

5V 3A Battery Formation& Grading Machine For Lithium ion Battery

описание
Приложение: испытывать батареи Метод проводки: Сменный ток трехфазный четырехпроводный
Отображать: ЖК -дисплей Разрешение: 0,001 В/0,001а
Метод проводки: AC 220V Настоящее разрешение: 1 мА
Интерфейс связи: RS232/RS485/USB/Ethernet Текущий диапазон: 0-50A
Напряжение: 380 В. Частота питания: 50±5% Гц
Программное обеспечение: Включен Тип: Испытывая система
ТГД: <5% Текущее время переключения: 20 мс ((-90% ~ 90% F.S.)
Точность измерения температуры: ± 1 ℃ Выходной ток: 300A/400A/600A/1000A/2000A/4000A
точность напряжения тока: ± 0,02% F.S. Напряжение питания: 380±10% ВАК
Источник питания: AC 220V/50 Гц Емкость: 60V~200V, 100V~1500V
Общая выходная мощность: 10-120 кВт размер шкафа: 600*850*1980 (W*D*H мм)

5V 200A Battery Formation& Grading Machine

Power battery modules/packs (such as square aluminum shell LFP/NMC batteries): The capacity division current can reach 100A-500A, testing high voltage and high current performance for electric vehicles and power tools.



Product Description

Battery Formation& Grading Machine 5V 200A For Lithium ion Battery 5V 3A It can used for cylindrical batteries(18650,21700) which widely applied in Consumer electronics,covering Cell phones, laptops, drones battery capacity and more.


Prismatic Cell Grading Machine with energy feedback function is the latest generation of energy-saving battery testing equipment based on PWM high-frequency power feedback technology . after years of research and development. It is widely used in lithium-ion batteries and nickel-metal hydride batteries formation and capacity testing of nickel-cadmium batteries.

5V 3A Battery Formation& Grading Machine For Lithium ion Battery 0

Product Specifications

Model 8008-HD
Channels 32 Channels
Voltage Range DC0~5V
Voltage Accuracy 0.1mV
Output Current Range 200mA ~200A
Current Accuracy 0.1mA
Jig Form Push Down Four Wire Method Fixture
Fixture Spacing 162mm
Battery Type Prismatic Cell
Working Power Supply Three-Phase Five-Wire Ac380V±10%, 50Hz
Ac Current Distortion Rate ≤5%
Power Consumption ≤13Kw
Power Factor ≥0.99
Charging Efficiency Of Whole Machine ≥75%
Feeder Net Conversion Efficiency ≥70%
Equipment Failure Rate <1%
Work Environment Temperature -10 ~ 40℃, Relative Humidity ≤80%
Heat-Dissipating Method Natural Air Intake And Upward Exhaust
Control mode Computer control equipment operation, whole cabinet control/single board start/single point start, with scanning system
Communication mode 485 serial port communication (baud rate 57600)/TCP communication
Process setting Up to 32 steps and 256 cycles can be set
Charge voltage time Constant current, constant voltage, constant current constant voltage
Charge end conditions Voltage, current, time, capacity, -△V
Discharge mode Constant current, constant power, constant resistance
Discharge end conditions Voltage, time, capacity
Time range 0~3000 minutes/step, time unit is min
Time accuracy <+1%60

Product Characteristics

Accurate sorting to ensure battery consistency Capacity sorting

1. High-precision measurement: ±0.5‰ current/voltage accuracy

2. Intelligent grading: According to parameters such as capacity, internal resistance, and voltage, the battery is automatically graded

3. Performance verification

  -Cycle life test: Supports cyclic charging and discharging

  -Temperature simulation: Optional temperature control module (-40°C to +85°C) to test battery performance in extreme environments.

4. Data management

  Report generation: One-click export of PDF/Excel reports to meet quality certification requirements (such as IEC 62133, UL standards).
