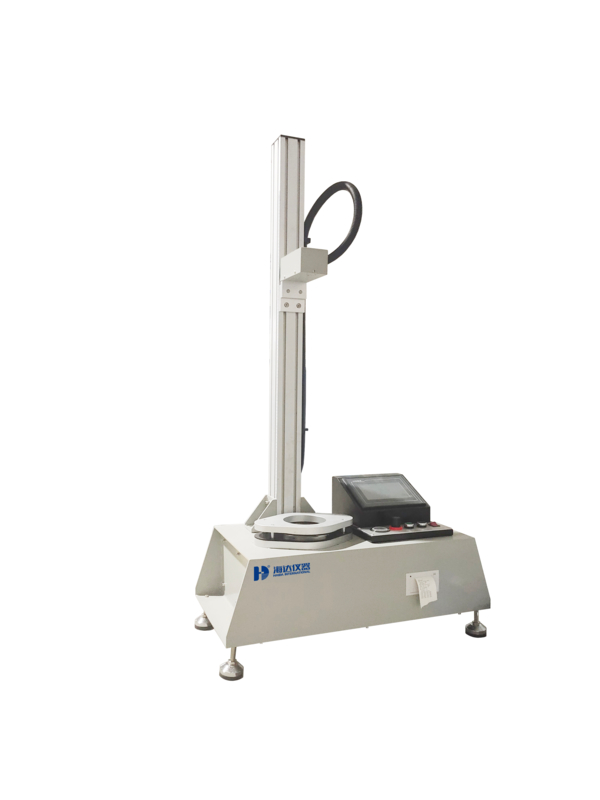

EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER

EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER
EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER

Большие изображения :  EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER

Подробная информация о продукте:
Место происхождения: КИТАЙ
Фирменное наименование: Haida
Сертификация: CE,,ISO
Номер модели: 5085-HD
Оплата и доставка Условия:
Количество мин заказа: 1
Цена: лично переговорить
Упаковывая детали: Каждый комплект защищен смоляным волокном и пленкой PP, а затем помещайте в сильный деревянный корпу
Время доставки: 20 дней после подтверждения заказов
Условия оплаты: L/C, T/T, D/A, D/P, Western Union, Moneygram
Поставка способности: 300 комплектов в месяц

EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER

описание
Время впрыски: 0-9999s [Регулируемый] Разрешение вращающего момента: 0.001NM
Гарантия: 1 год Метод работы: Электрический контроль
Нагревающая сила: 4 кВт Время зарядки: 0~999·Программируемая
Диапазон испытаний: 0.005-300W/ ((m*K) Точность смещения: 0,01 мм
Плунжер: Диаметр 9,4742 ± 0,0076 мм Использование: Тестирование
Режим испытания A: Комнатная температура Винт скорость: 0 ~ 150 оборотов в час
Температурная диапазон: Нормальная температура-30 ° COR -50 ° C. Хранитель образца: Ширина внутренней канавки 12 мм
Внешний размер: 900*500*800 (W*D*H)

EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER
SOFTWARE DETAILS

APPLICATIONS

Fall Dart Impact Testing Machine is used to test the impact resistance of various plastic films and slices, which meets the standards of ASTM D1709.

GENERAL SPECIFICATIONS

Estimated Packaging Dimensions: (L×W×H) 1020*600*2250mm

Estimated Gross Weight: 130kg

Power supply source: Single-phase, 220V±10%, 50/60Hz (can be appointed)

STANDARD FEATURES
Test Item Specification
Testing sample mass Method A: 50-2000g; Method B: 300-2000g
Testing accuracy 0.1g (0.1J)
Testing method Method A & Method B (Option)
Specimen size >150mm×150mm
Diameter of impacting head Method A:Ф38.1±0.1mm, Method B:Ф50.8±0.1mm
Diameter of dart shaft Ф6.5±0.1mm
Inner diameter of specimen fixture 125±2 mm
Impacting height Method A : 0-660mm, Method B: 0-1520mm
Weights Method A: 5g*2, 15g*8, 30g*8, 60g*8, 500g*2
Method B: 15g*2, 45g*8, 90g*8, 300g*2
Power Single-phase 220V, 60Hz
Estimated Weight 100kg
Specimen Fixture Pneumatic
ABOUT US

Haida International Equipment Co,Ltd

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER 0 EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER 1 EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER 2
WHY CHOOSE US?
  • Design & Production : Solution Consultation for each order
  • Recommend the most cost -performance machine
  • Research & Develop the suitable one for Special- designed Model.
  • Shipping & Delivery: One-Stop Service
  • Production- Deliver to your door - Installation & Training- Technical Support
  • Warranty
  • 1 year warranty with lifetime technology support
  • After-Sale Service
  • React within 2 Hours
  • Video inspection & on-site service combined
FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
