Boost Battery Performance with Charge / Discharge Battery Testing System for Maximum Efficiency

Boost Battery Performance with Charge / Discharge Battery Testing System for Maximum Efficiency
Boost Battery Performance with Charge / Discharge Battery Testing System for Maximum Efficiency

Большие изображения :  Boost Battery Performance with Charge / Discharge Battery Testing System for Maximum Efficiency

Подробная информация о продукте:
Место происхождения: КИТАЙ
Фирменное наименование: Haida
Сертификация: CE,,ISO
Номер модели: 9001-HD
Оплата и доставка Условия:
Количество мин заказа: 1
Цена: лично переговорить
Упаковывая детали: Каждый комплект защищен смоляным волокном и пленкой PP, а затем помещайте в сильный деревянный корпу
Время доставки: 20 дней после подтверждения заказов
Условия оплаты: L/C, T/T, D/A, D/P, Western Union, Moneygram
Поставка способности: 300 комплектов в месяц

Boost Battery Performance with Charge / Discharge Battery Testing System for Maximum Efficiency

описание
Приложение: испытывать батареи Метод проводки: Сменный ток трехфазный четырехпроводный
Отображать: ЖК -дисплей Текущий диапазон: 0-10A
Разрешение: 0,001 В/0,001а Метод проводки: AC 220V
Точность: ± 0,1% Источник питания: Атмосфера
Выделить:

LCD Charge Discharge Battery Testing System

,

AC 220V Charge Discharge Battery Testing System

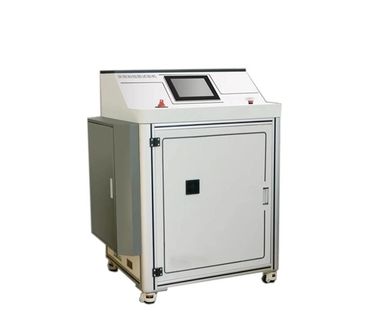

Product Overview
This restricted short-circuit test device is designed to verify the compatibility of protective grounding conductors and overcurrent protection devices (rated ≤25A) with fault currents up to 1500A, and to assess the integrity of supplementary safety protections.

It complies with Clause 5.6.4.1, 5.6.5.1, and Appendix R of IEC 62368-1:2018, EN 62368-1:2019, and GB 4943.1-2022, applicable to audio, video, information, and communication technology equipment.

Working Principle
The system uses an energy storage device to generate instantaneous high-current outputs. Discharge time and initial voltage are adjustable. After each discharge, the unit auto-recharges for subsequent tests. Discharge current is recorded and displayed as a current-time curve.

Key Features

  • Complies with IEC 62368-1, EN 62368-1, and GB 4943.1-2022

  • 15-inch color touch LCD with built-in thermal printer

  • High-precision sensors and 14-bit AD conversion

  • User-friendly keyboard and touchscreen operation

  • Supports automatic/manual current ramp and fast-break tests

  • Real-time current and time monitoring

  • Overcurrent protection with adjustable current and timing limits

  • Grounding and zero-return detection for safe operation

  • Smart current control with auto-zeroing and alarms

  • Robust anti-interference design for harsh environments

  • Optional remote communication, door interlock, and voltage verification interfaces

Technical Specifications

  • Control System: PLC + touchscreen HMI

  • Test Stations: 1

  • Current Range: <25A

  • Max. Current: ≥1500A (customizable)

  • Discharge Time: 5–100 ms (adjustable)

  • Test Mode: AC/DC switchable

  • Discharge Voltage: Customizable

  • Timer: Configurable via touchscreen

  • Standard Includes: DC power supply, overcurrent protector, 4×3m test cables (2.5 mm²)

  • Functions: Adjustable discharge voltage/timing, overvoltage/overcurrent protection

  • Safety: Insulated connections, fault alarm system

  • Dimensions: 1250mm × 960mm × 1650mm (W×D×H)

  • Power Supply: AC 220V, 50HzBoost Battery Performance with Charge / Discharge Battery Testing System for Maximum Efficiency 0

  • Boost Battery Performance with Charge / Discharge Battery Testing System for Maximum Efficiency 1
