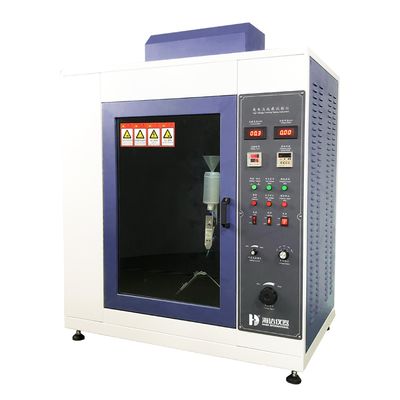

High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric

High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric
High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric

Большие изображения :  High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric

Подробная информация о продукте:
Место происхождения: Китай
Фирменное наименование: Haida
Сертификация: CE,,ISO
Номер модели: 6008-HD
Оплата и доставка Условия:
Количество мин заказа: 1
Цена: лично переговорить
Упаковывая детали: Каждый набор защищен смолой волокна и ПП пленки, а затем помещен в сильный деревянный корпус с опера
Время доставки: 20 дней после подтверждения заказа
Условия оплаты: Аккредитив, T/T, D/A, D/P, Western Union, MoneyGram
Поставка способности: 300 комплектов в месяц

High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric

описание
Объем камеры: ≥ 0,5 м3, с стеклянной дверью наблюдения Интервал капель: Регулируемый: 0-99,99 секунд
Фильтровая бумага: Стандартные размеры; толщина: 0,15-0,17 мм Источник питания: Обменное давление 220 В, 50 Гц, 1 КВА
Выделить:

High Voltage Tracking Resistance Test Machine

,

flammability test Machine For Fabric

,

flammability tester For fabric

High Voltage Tracking Resistance Tester GB/T 6553-2003

Product Description


The High Voltage Tracking Resistance Tester is designed to evaluate the tracking and erosion resistance of electrical/electronic products, household appliances, and their materials. High Voltage Tracking Resistance Tester simulates harsh environmental conditions by applying liquid contaminants and inclined samples under power frequency (48Hz-62Hz) to assess the performance of electrical insulation materials.

Test Standard

The equipment is manufactured in accordance with GB/T 6553-2003 and IEC 60581:1984 standards.
Product Specifications

Model 6008-HD
Chamber Volume ≥0.5 m³, with a glass observation door.
Electrical Load Adjustable voltage range: 0-6000V ±5%. Overcurrent protection trips at ≥60mA for 2 seconds, triggering an audible alarm (reset via voltage stop).
Droplet Interval Adjustable: 0-99.99 seconds.
Filter Paper Standard dimensions; thickness: 0.15-0.17mm.
Electrodes Thickness: 0.5mm; spacing between upper and lower electrodes: 50±0.5mm (standard-compliant dimensions).
Droplet System Adjustable height; contaminant flow rate: 0.075-0.9 mL/min; pre-settable test duration.
Key Features Stainless steel construction for all components (electrodes, fasteners, screws, washers, nuts).
Power Supply AC 220V, 50Hz.

High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 0






About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 1High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 2High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 3High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 4High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 5High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 6




Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined



FAQ:

Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.

Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days

Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.

Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines

Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)

Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution

Q: How do you ensure product quality and service?

A:100% pre-shipment inspection with full performance testing

Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators

Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)

Market-proven reliability:

Globally recognized by industrial users

Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
